Sweeney - 33.5" Custom Square 32oz Copper Outdoor Fire Pit & Grill Cover Photo Page (3 / 11)

Cost: $1,806 shipped to Holly Springs, Mississippi

Updated 7 / 2012

Company
Profile
Roof Caps Chimney
Caps
Scuppers Gutters Shipping

Contact Info

..

Note: remember that you can click on each picture shown to get a closer look

Todd Sweeney is a contractor for his clients in Holly Springs, Mississippi. He contacted me on 10/26/10 and over the next 4 months we gradually worked out the details. He wound up saving $225 from the more copper I used than predicted in my quote.

This project was for a custom copper 25" wide grill cover and a 33.5" wide fire pit cover, which needed a flange drop down into the pit 21" wide ISD sleeve made with 20oz copper to cover an outdoor gas fire pit in order to keep it clean and dry when not in use.

Here is some of the shots I sent them during the fabrication process.

These show the first 3 side formed and held together with clamps for an 8/12 pitch angle. The drop in frame is on the right, which will be cemented into the firepit. A stabilizing sleeve attached to the cover will extend down into the inside of this sleeve in their fire pit.

The handles are set in front of the cover to get a few shot for the Clients to help decide their placement. This may have more seams that what I had done in the past, but I wanted to make this cover with no exposed fasteners and a more uniform look. I made some pieces to cap over the seam inside shown on the right.

I marked it with this X for alignment for the best fit. This shows the drop flange attached to the cover

These premium PVD coated brass handle for a good life-time finish that will not tarnish and is a lot harder than a lacquer finish for scratch resistance, since it is really a colored chrome plating. They run $75 each installed.

The right photo is the sides of the grill top cover. It had to be made with a flat top for clearance when it is in the open position. I could not seem to find a brass handle that matched the style. This black handle was all I could find.

After some consideration the clients opted for this stainless steel handle in stead. I also needed to make a hinged frame to attach to the counter top.

After they were finished I packed these up and sent them. It seems I had not packed them well enough and the grill cover got dented by the peak of the firepit cover after the foam cushion between them got dislodged, so they had to send it back for me to repair.

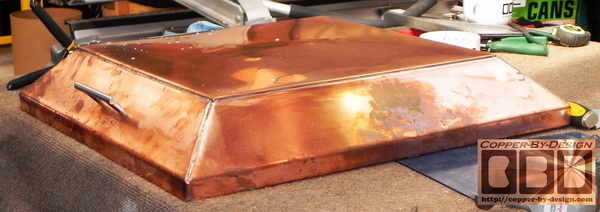

I decided the best way to solve this was to stretch and dome the flat top a bit, which also helped strengthen it, so in the end it was for the best. I also made a pair of these 4 gauge copper wire supports to hold up the cover while they use the grill.

Cost: $1,806 shipped to Holly Springs, Mississippi
(saved $225 - more copper used than quoted)

..

]
