Even though most of the work I do is custom work, here are a few projects I've done that show the diversity of what I do to solve your needs and desires.  Below are links to larger photos and whole web pages with more detail about the more unique custom sheet metal projects I've done.  Even if your needs are different than what is shown on these pages this shows how I'm good at helping to brainstorm solutions, design, and fabricate nearly anything you may need.

These days most of my client are not local to us, so we do ship orders all across the Nation as well. Don't be shy and write me an e-mail to ask if we can help with your unique needs.

.

Click on any of these photos to see more photos of these unusual items and read about those projects or see a larger copy of the same photo for a better look at the details.

Fire Pit & Pizza Oven Covers

fire-pit cover / pizza oven

Copper fire-pit cover

Copper fire-pit cover

Copper fire-pit cover

pizza oven door cover w/brass handlesCopper fire-pit cover

 Fancy Chimney Caps

Copper Clad Turret

For more detailed description 110 photos and 2 videos for this project click this link:
http://copper-by-design.com/cw/Brown-Umberger.html

Cupolas

This project was 7' wide ISD, Roof was 7' 10" wide. The sides were covered in aluminum sheet metal, and the roof was clad w/20oz copperas seamlessly as possible. This structure was built 2X stronger than standard house construction.

Custom Weathervane w/Turret Roof Cap Chimney Caps

 Range Hood

This was a custom wood concave stove vent range hood I covered in copper for a client in Vancouver, Washington who wanted this rustic industrial look. The first image on the left is before the decorative straps were attached. It was made with few seams. You can see more photos and detailed description of this on this separate web page:
http://copper-by-design.com/cw/Ueber.htm

Rustic Mantle, Chimney Cap, & Watering Troth



Here's a trough they also had me make to resemble a photo of an old rusty steel one

Lighted Cupola w/Weathervane Mount

He wanted a weathervane mount built into the roof of this as well. I made a taller base to sit on the roof ridge. I had to be creative to work out a nice soft glow inside, and rig up the security flood light in the base. You can see more photos at:
http://copper-by-design.com/cc/cp/Matovich.htm#Cupola

I experimented with several  different systems to see what would work best. I ended up using a set of 2 bulbs that reflected off a shield above and a larger reflector below in the base. I also made a third white reflector up in the center of the cupola. This project took me longer to build than their larger chimney cap.

7' Tall Copper Finial over 3/4" Marine Grade Plywood, Orb Filled w/Concrete, along w/Copper Covered Cedar Window Well  Frames

Chimney & Turret Roof Cap

Free-standing Fire Pit Exhaust Hood

To see more photos and read more details of it's construction:
http://copper-by-design.com/cc/cp/Takhar.htm

Large 28 Unit Chimney Cap Project

 (click here for more photos and step-by-step details)

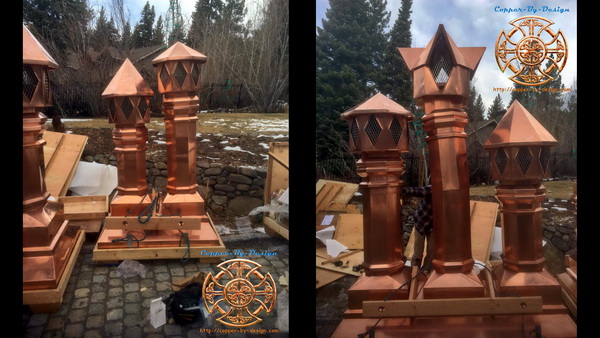

 Fancy Chimney Pots

Here is what we had designed, fabricated, and installed on a house near Downtown Portland, Oregon. We had their name and address listed here for over 3 years, but they requested their personal information be removed from our web site (10/07). Contact me for the address if you want to see them in person.

You can go to our fabrication web page to tour the 54 photos of the design and fabrication process for this set of chimney smoke stacks, or chimney pots as many call them.

The two side stacks are 3' 6.5" tall.  The center stack is 4' 6.5" tall.  They are mounted on a 3 flue chimney over each flue liner side by side just as they are shown here, with only 2" between each flue liner.

The center chimney stack in the picture was very tricky to design and fabricate and get all the angles just right for a 24/12 pitch.  The side caps are at a 12/12 pitch.  They turned out well and the client was quite pleased with the results.

 (click here for more photos and step-by-step details)

Exterior Copper Bench Top over Ipe Hardwood set over the Brick Wall around Window Well I also built

Cost: $865 - Portland, Oregon

Custom Window Trim Flashing

 Copper Trim Work

Forest Grove, Oregon

This is a copper sewing machine headstone for out client Chris Freybler of Custom Engraving Ph# 616-878-5644 in Byron Center, Michigan.

copper sewing machine headstonecopper sewing machine headstone

$450 delivered to Byron Center, Michigan 9/10

Moving Jaw Metal Face Mask

$400 w/shipping to Bossier, Louisiana

.

.

Helpful Roofing Information
For some valuable advice with regards to roofing and rain management issues check out our:

(a) Gutter Installation
(b) Gutter Debris Protection Options
(c) Roofing Quality Standards
(d) Chimney Flashing

(e) Moss Control & Treatment

web pages for answers and solutions that could save you thousands of $ and a great deal of anguish.

If you do find this information very helpful, feel free to send us a $ tip for the assistance we so freely have published on the web here for your benefit, like you might tip a waitress.  Heck, send us a gift certificate for a candle lit dinner for two.



.

Below is a photo of our
Better Business Bureau's
NW Business Integrity Award
for the year 1998

1999 Better Business Award

We were also a 1997 finalist for this same award. See our referral web page to see how we managed to be honored with this special award

.
